Where topics live, and how they are computed

Status: design exploration, round 4 of the UI design process . Nothing here is built. The mocks are round 4 of the fleet layout studies (open the page and pick T0 to T7); a follow-up PR would build the recommendation at the end.

The problem

The dashboard (#299) has a word cloud titled “What’s on the radar”. Clicking a word types it into the search box at the top of the sidebar (#298), and the sidebar list filters to the panes that mention it. The cloud is a remote control for the list.

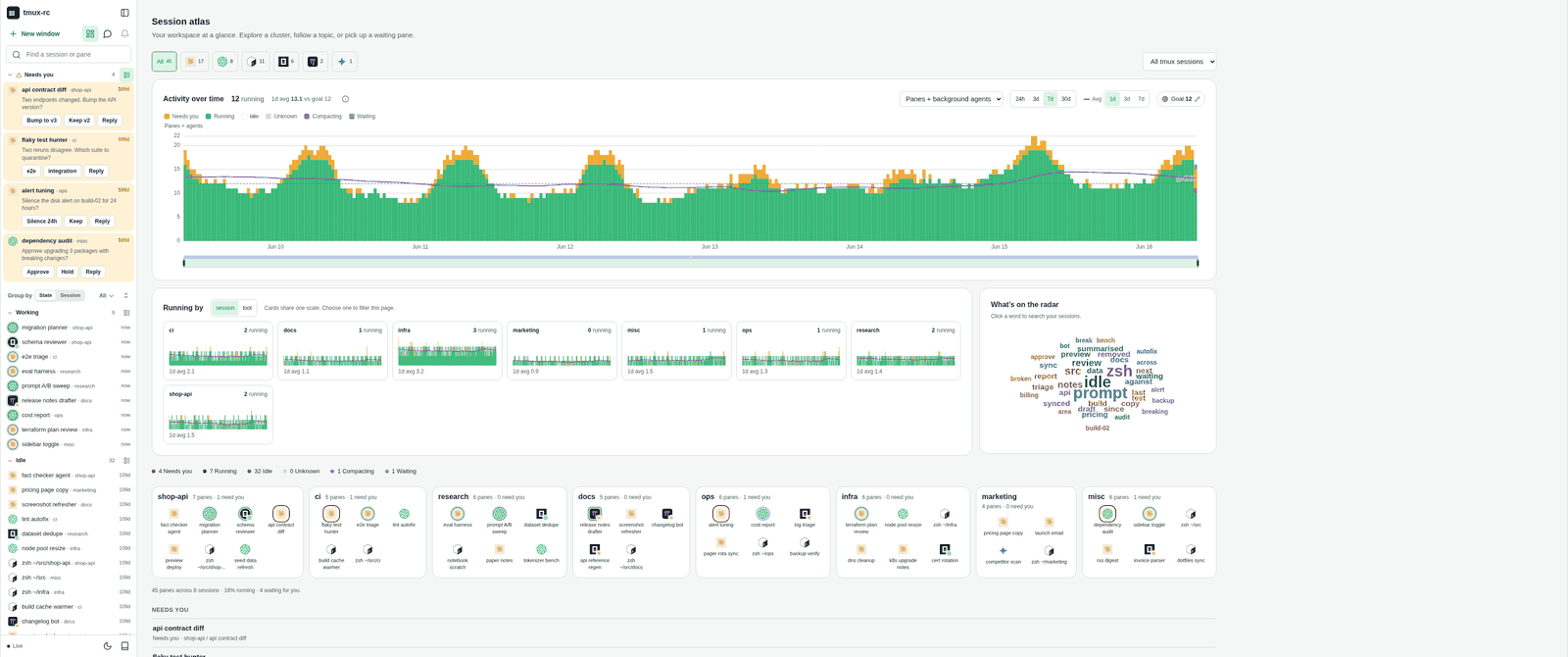

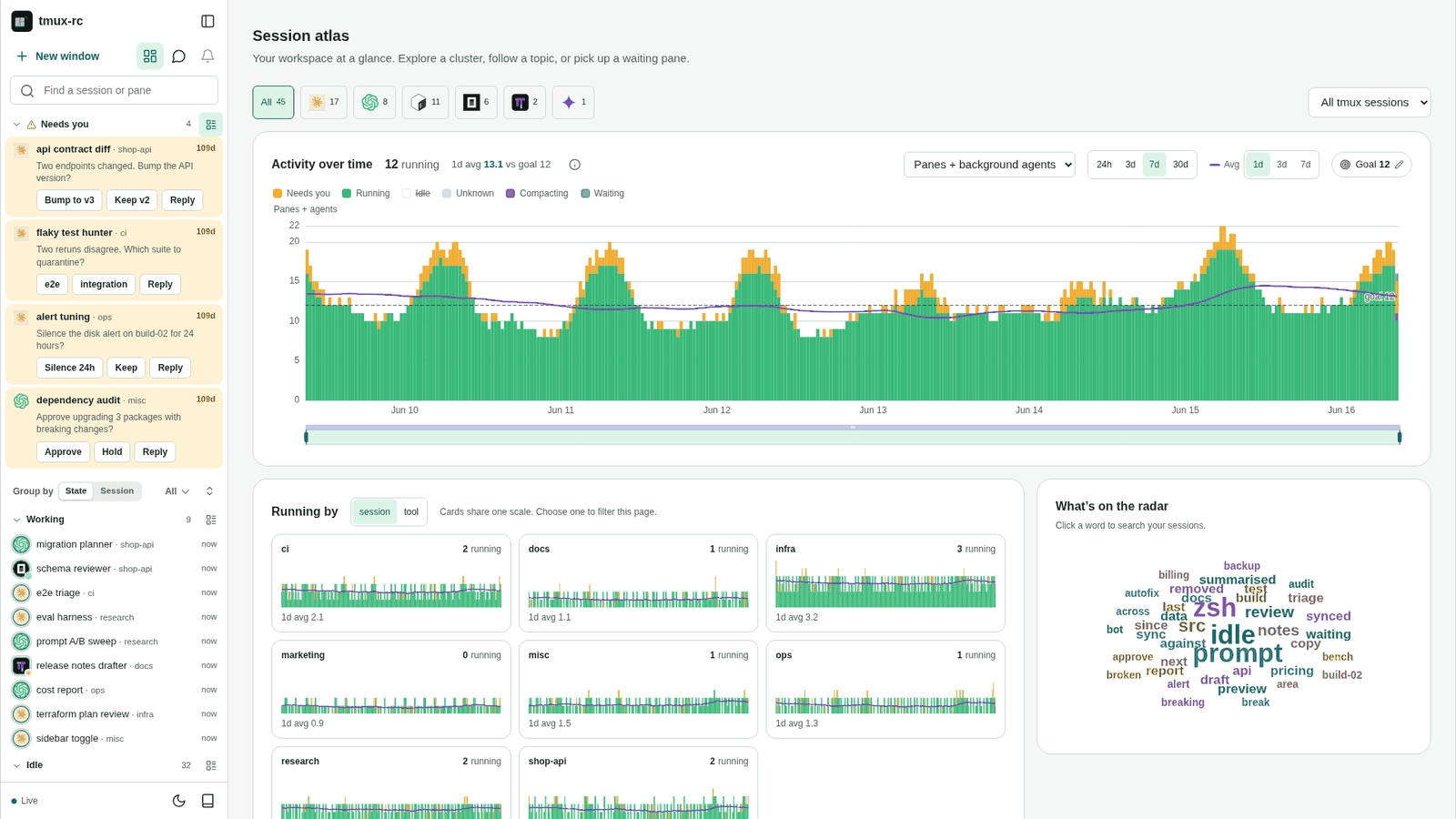

On a wide screen the remote control sits at the opposite end of the room. At 1920 pixels the cloud starts about 1,070px to the right of the sidebar; at 2560 and 3440 it is 1,700 to 1,850px away. It also took 536px from the “Running by” small multiples beside it, so eight session cards wrap as 3, 3 and 2 at 1920 and as 6 and 2 at 2560: an orphan row. At 1280 by 800 the row stacks and the cloud starts at y=1,201 in the real app, well below the fold. And because it lives on the dashboard, the moment you open a pane there are no topics anywhere.

On a huge screen it “almost makes more sense to be in the sidebar”, where you could search and get some insight without opening a pane, though it is not obvious we want that. The words themselves are also weak. In the shipped cloud on the demo fleet the three biggest words are idle, prompt and zsh. They come from shells whose summary is “Idle at the prompt”, not from anything the agents are working on. Moving a bad list closer to the sidebar does not make it useful, so this round covers both where topics are shown and how they are computed.

How this round was run

The earlier rounds mocked layouts that did not exist yet. This one varies a layout that does, so every frame is the shipped sidebar and dashboard redrawn in the mock page, filled with the demo fleet that make screenshots served when these frames were measured (45 panes in eight sessions, invented names like shop-api and ci; the fleet has grown since, and the mock keeps that snapshot so the measurements below still describe it). Real screenshots of integration, shot from that same fleet, were kept beside the mocks while building them. The mock reproduces the shipped word counting, so the cloud in frame T0 holds the same 40 words as the real one. The frames and screenshots predate #313, which dropped the dashboard’s “Session atlas” heading and subtitle and instead labels its filter row “Sessions”. Both still show that heading, so the dashboard y positions quoted in this note include it; nothing horizontal changes.

Each frame is interactive enough to judge: click a topic and the list filters, with the topic shown as a pill in the search box; click the search box where a variant has suggestions; switch Group by. A toolbar switch flips every frame between the shipped word list and a cleaned one (below).

Every frame was then rendered at 1280x800, 1440x900, 1920x1080, 2560x1440 and 3440x1440 (plus dark mode at 1920) and measured in the page rather than by eye: distance from the topic control to the list, how far the list is pushed down, how many list items stay in view, the smallest topic label and how many labels are actually on screen, the empty share of the dashboard (points sampled every 24px that land outside every card), and anything that wraps or orphans. Where the real app could be measured the same way it agrees with the mock: the shipped cloud starts 1,067px from the sidebar at 1920 in the app and 1,070px in the mock, and 1,849px at 3440 in both.

The options

T0, shipped. The baseline above: a big canvas, but far from the list, below the fold on short screens, dashboard-only, and the cause of the orphan row.

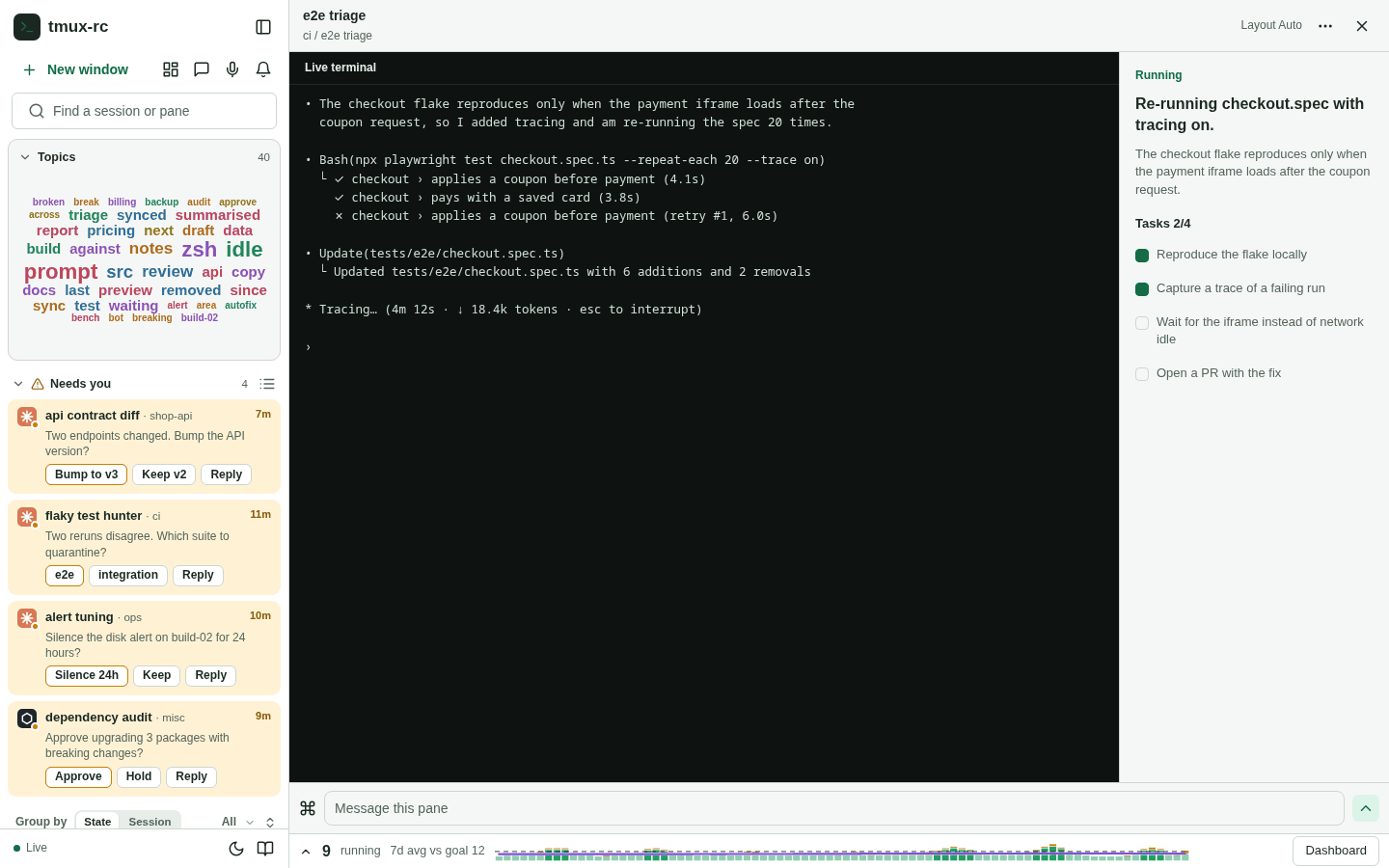

T1, the cloud as a sidebar section. The same cloud at 266 by 190 between the search and the list. The gap drops to zero and topics exist with a pane open, but the section pushes the list down 238px. On a 1280x800 screen that leaves three list items in view instead of seven. The sizing rule bottoms out at 18px for the largest word and 10px for the rest, so the cloud loses the size differences that make it a cloud.

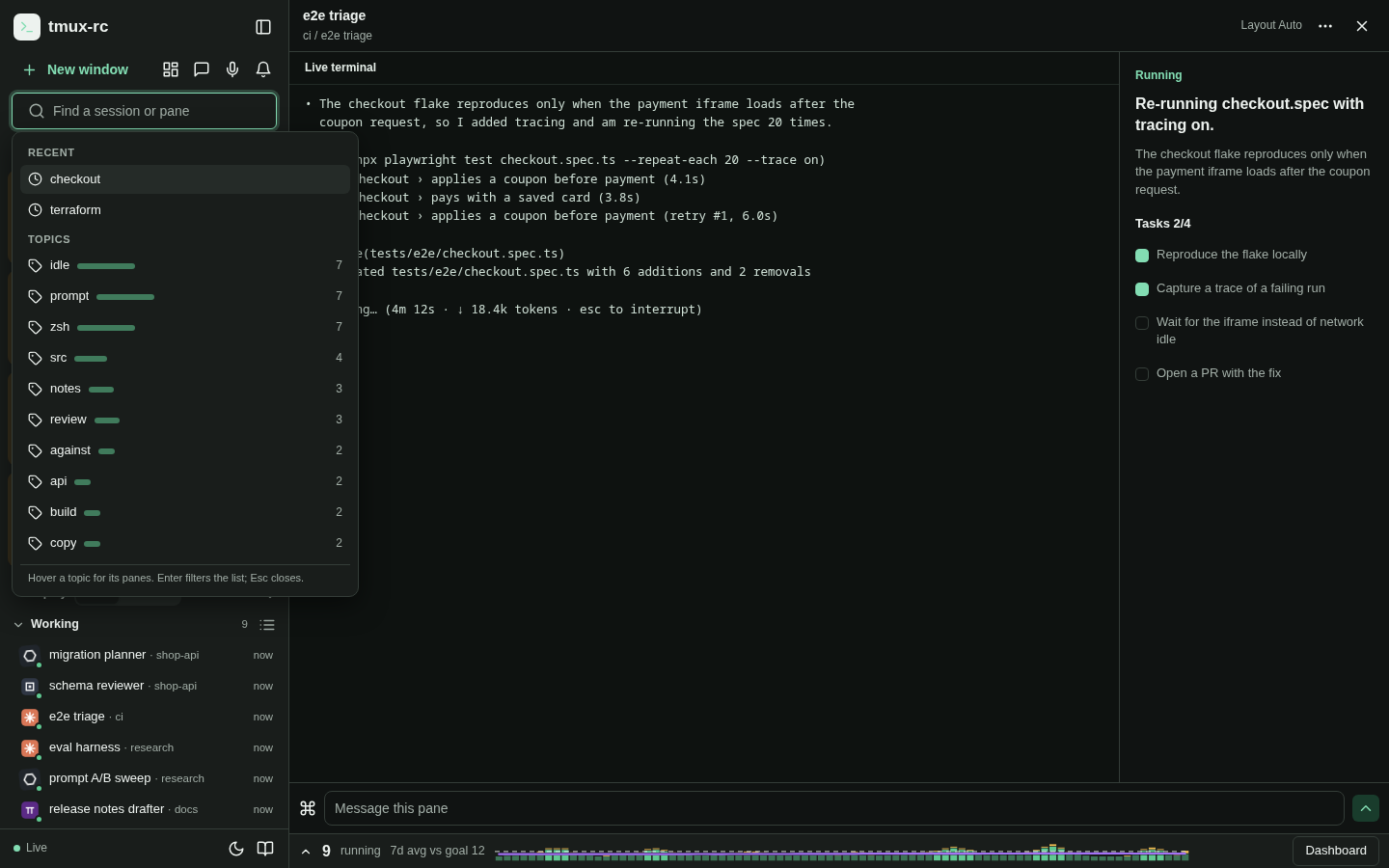

T2, topics inside the search box. Nothing new at rest. Focusing the empty search opens a suggestion list: two recent searches, then the top ten topics, each with its pane count and a bar. It costs no sidebar height, puts topics where you already go to filter, and a ranked list reads better than a cloud (13px labels, the count as a number rather than a font size). The cost is discovery: a topic you did not know to look for never shows up, which was the point of “on the radar”.

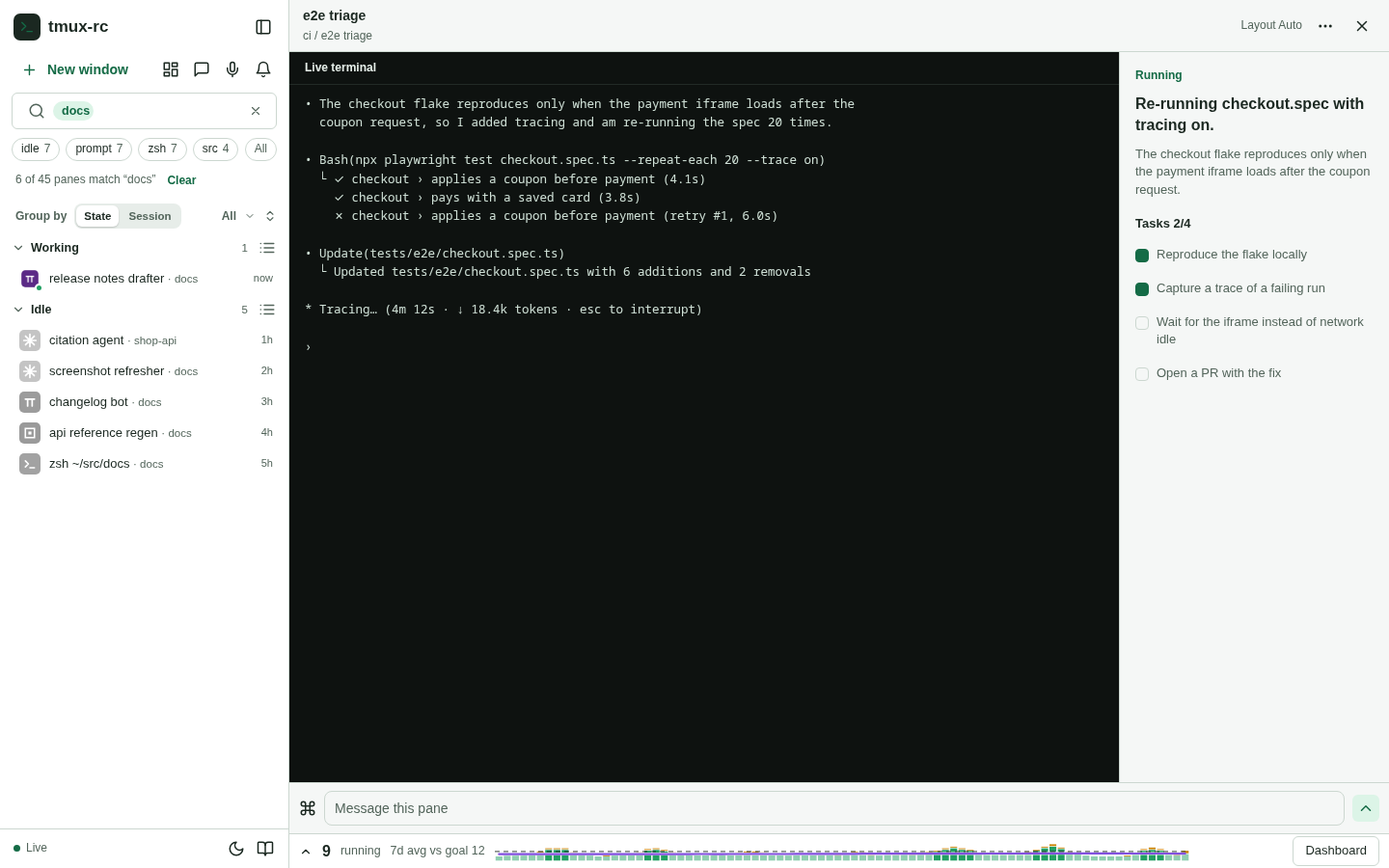

T3, a one-line chip strip under the search. The top topics as chips with counts in one 26px row. The active topic becomes a pill in the search field, and “All” opens the dashboard cloud. It is always visible and adjacent to the list for 34px of height, and chips stay 12px at any width. But the sidebar is 300px at every screen size, so only four chips fit, and on the shipped word list those four are idle, prompt, zsh, src. The strip only works with a cleaned list.

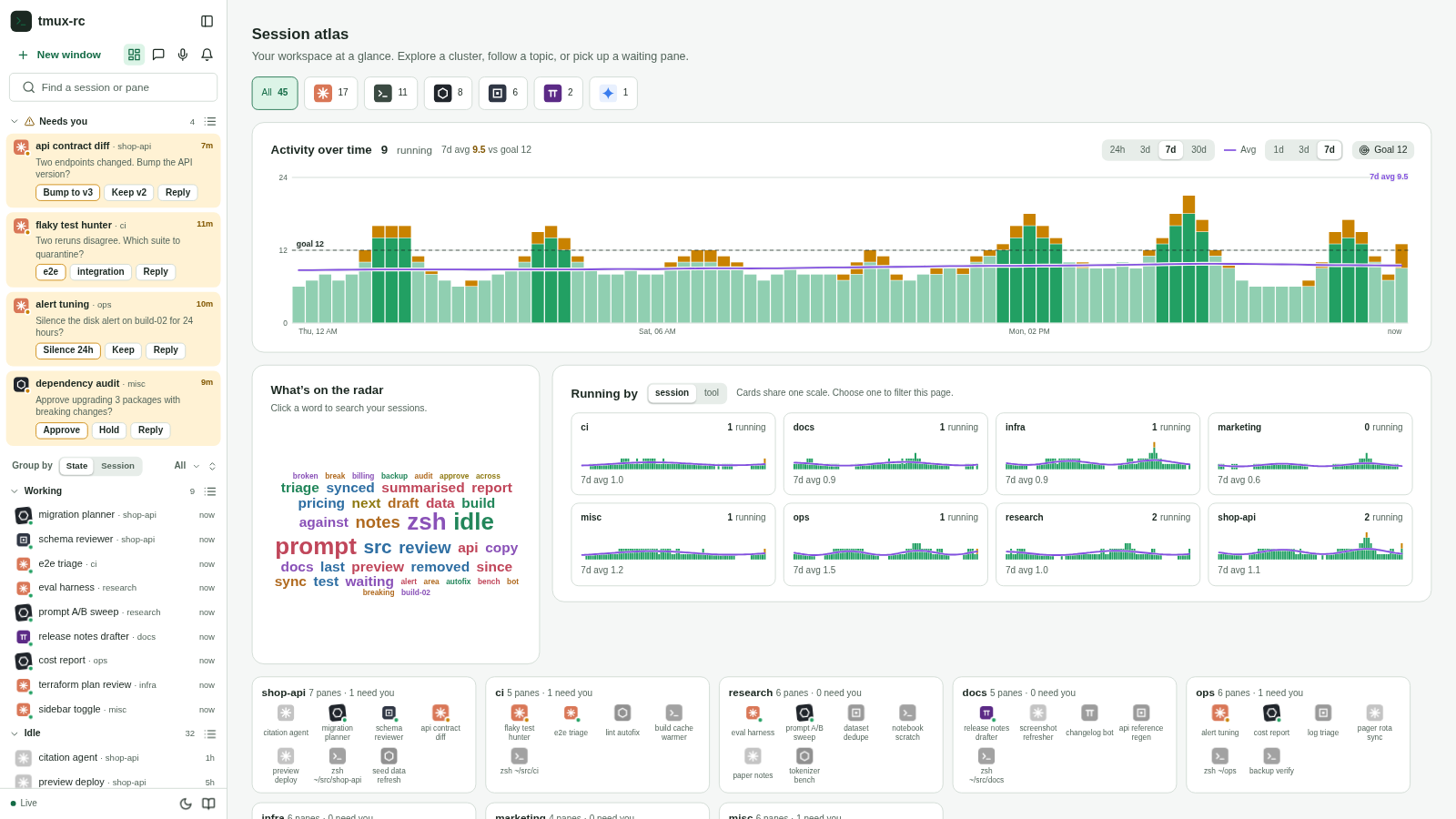

T4, the cloud leads the Running-by row. The cloud swaps sides and becomes the first card under the chart, 33px from the sidebar instead of 1,070. The session cards are also balanced (4 and 4 instead of 3, 3 and 2), which removes the orphan row at every width but 1280, where eight cards in at most three columns cannot balance. It is still dashboard-only and still under the chart, so on 800 and 900px-tall screens it sits at the bottom edge.

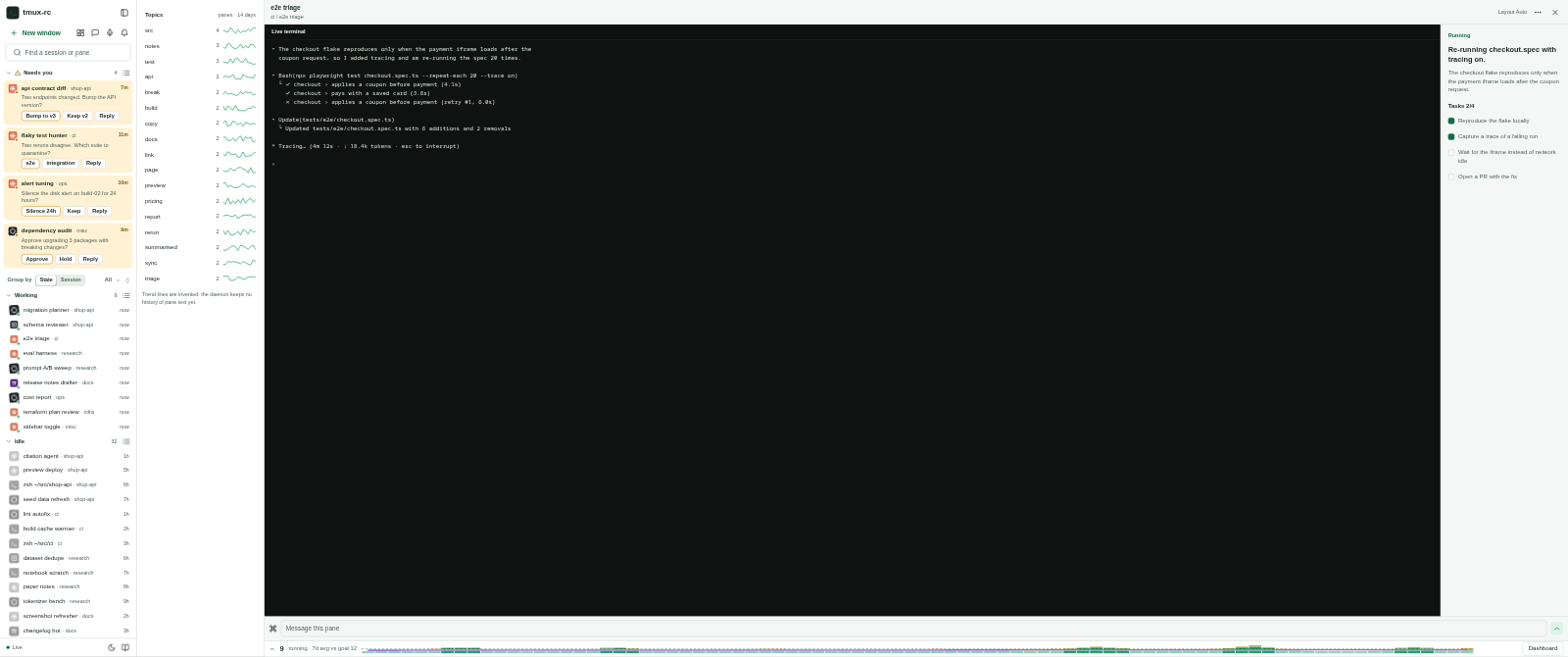

T5, a docked topics panel on ultra-wide screens. From 2,400px wide, a 280px panel docks between the sidebar and the work area: every topic as a row with its count and a 14-day trend line, with hover listing its panes. Below 2,400 it falls back to T3’s strip. It spends width ultra-wide screens waste, and a trend answers “what is new” rather than “what is big”. But it is a third column to scan, for screens few people have, and the mock’s trends are invented: the daemon’s history records pane states, never pane text, so trends need new storage before new UI.

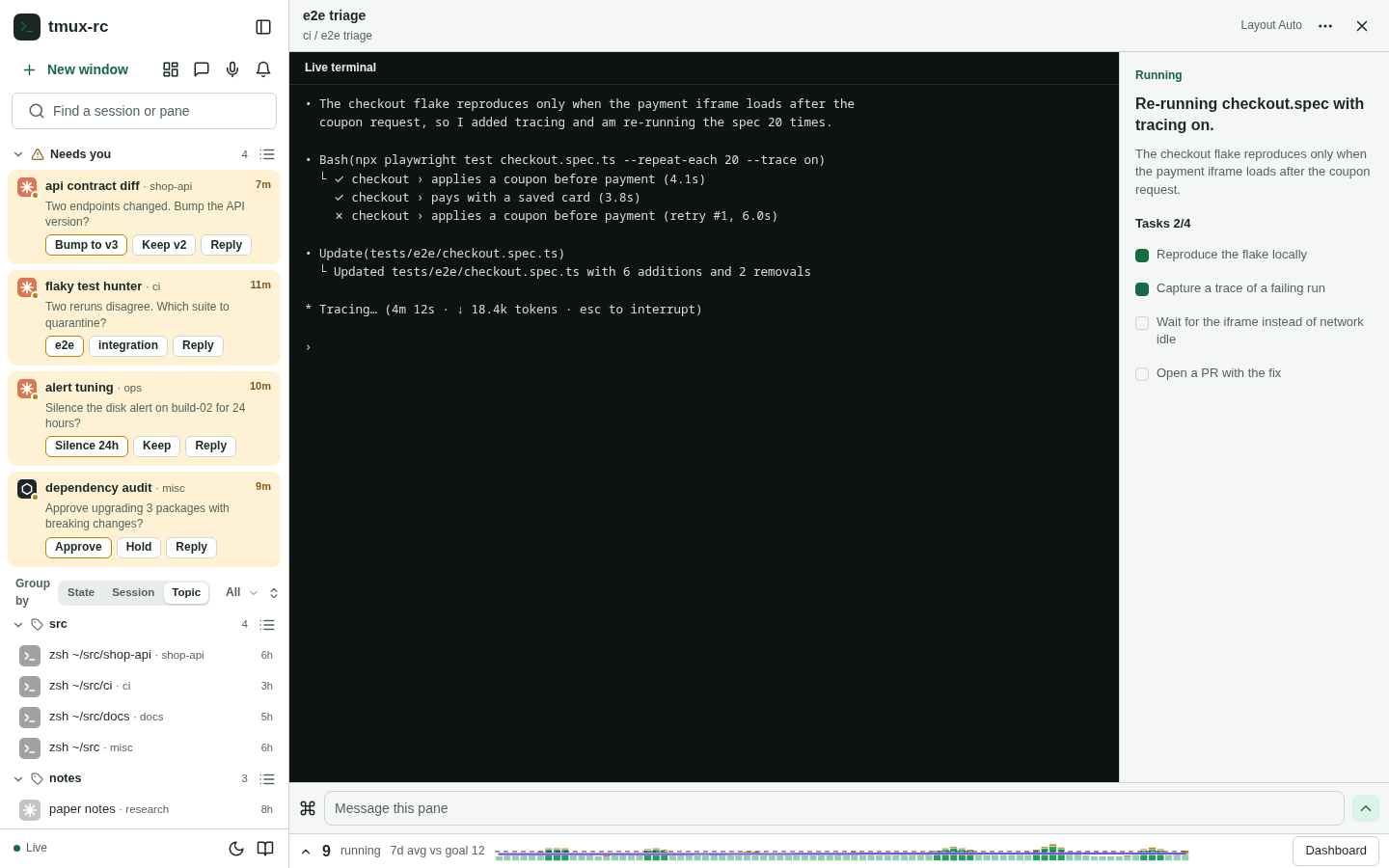

T6, Group by Topic. Topic becomes a third Group by mode beside State and Session; each pane sits under its most common shared topic, and grouped by session each header shows its top two topics. It adds no chrome and reads as a table of contents. In practice it shows how fragile the words are: on the shipped list the biggest group is idle, and the running “e2e triage” pane lands in it because its summary mentions waiting for “network idle”. Topics overlap but a pane sits in one group, so the primary topic is arbitrary, and the third segment makes the “Group by” label wrap.

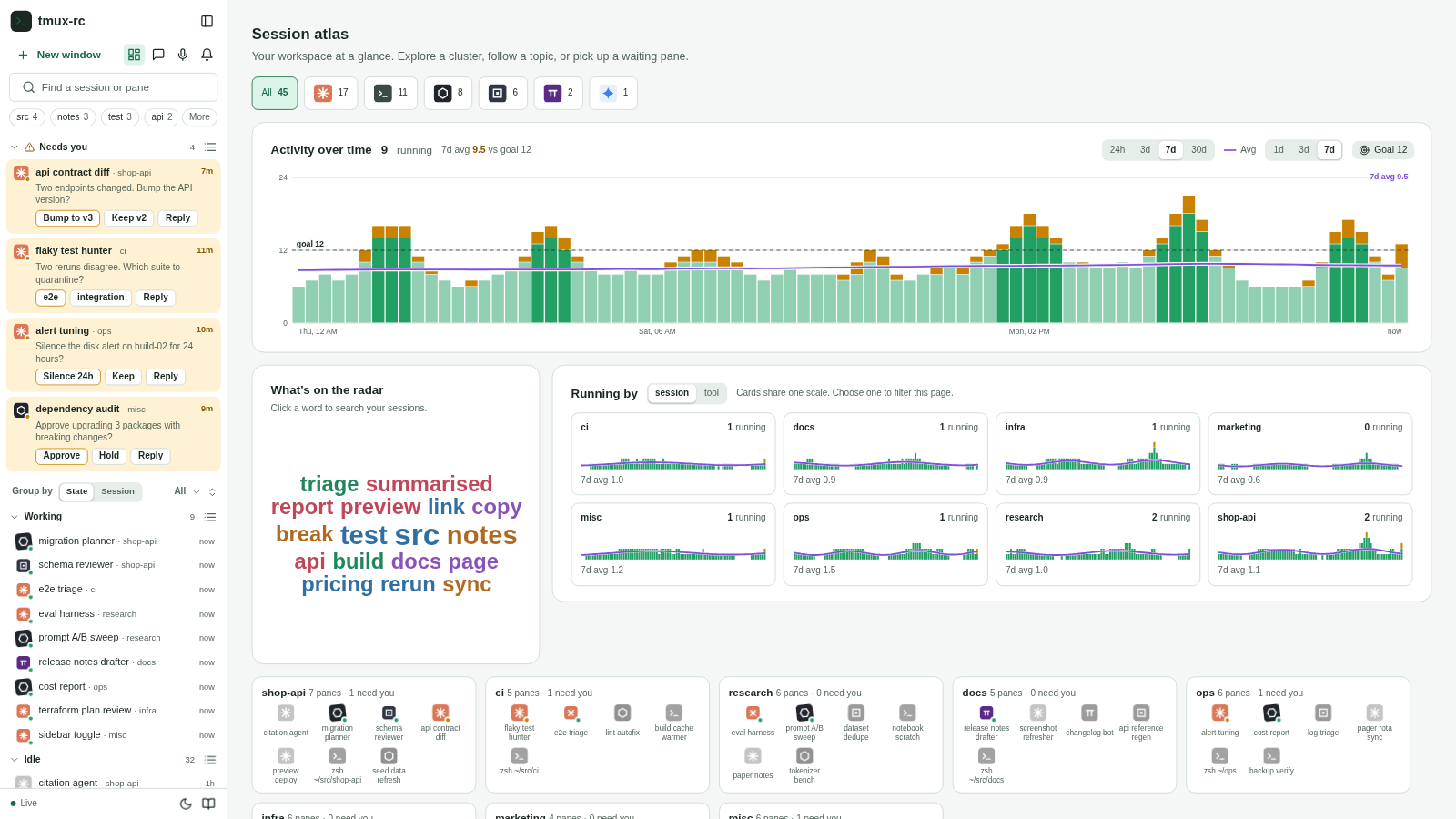

T7, the combination. T3’s strip for a glance, T2’s suggestions behind “More” and the search box, and T4’s dashboard. Topics are one line from the list whether or not a pane is open, the cloud stays as the browsing view but next to the sidebar, and the small multiples stop orphaning. All three surfaces show one list, so they must come from one function.

Other ideas were weighed and not mocked. Topics on each tmux-session group header are T6’s session mode. A “what changed today” strip in the empty work area needs the same text history as T5’s trends. Hover-to-preview is in every variant as a tooltip listing a topic’s panes.

Measurements

All variants with the shipped word list (light theme). Dark mode was shot at 1920 for every frame and measured the same; it changes no layout number. The same table is at the bottom of the mock page.

What the table says:

• Distance is binary. Sidebar variants sit within 10px of the list; T0’s gap grows with the screen, from 691px at 1440 to 1,849px at 3440 (134px at 1280, where the cloud is below the fold). T4 and T7 bring the dashboard cloud to 33px.
• Height is the real sidebar cost. T1’s 238px costs about half the visible list on laptops (3 items instead of 7 at 1280). The strip’s 34px costs one or two. T2 costs nothing.
• Lists read better than clouds. Chips and suggestions hold 12 to 13px everywhere; clouds fall to 10px in a 266px sidebar or a 380px card.
• The orphan row is a dashboard bug. Balancing the cards fixes it at every size but 1280, whatever happens to the cloud.
• Ultra-wide waste is the dashboard’s max width. 46% of the work area is empty at 3440 in every dashboard variant; only T5 spends that width.

How topics are computed

Today’s cloud is built in the browser on each render: take each pane’s title and its summary (or status line), split it into words of three or more letters, drop a stoplist of about 100 English and agent-narration words, count how many panes use each word, and show the top 40. It is simple and fast, and it fails in three predictable ways:

• State words win. “Idle”, “prompt”, “waiting”, “running” and shell names describe what a pane is doing, not what it is about, and every idle shell repeats them. On the demo fleet 9 of the top 15 words are state or narration words; on the live fleet 6 of 15 are.
• Fragments count as topics. “src” (from shell paths), “build-02”, “against”, “since” and “next” pass because the rule cannot tell a path or a preposition from a subject.
• Singletons dominate the tail. Most words appear in exactly one pane: 211 on the demo fleet, 391 on the live one. A word only one pane uses is that pane’s name, not a topic.

Candidate fixes, from cheapest to most capable:

• A domain stoplist and folding. Add state and narration words, drop tokens with digits, fold plurals and tenses, and require at least two panes per topic. It is a few lines in the existing function. On the demo fleet the top 15 become src, notes, test, api, break, build, copy, docs, link, page, preview, pricing, report, rerun, summarised: no state words, though “src” survives as a path fragment. On the live fleet it keeps 8 of the current top 15 and removes every state word. Its weakness is that a stoplist is whack-a-mole: every new agent brings new boilerplate.
• TF-IDF across panes. Weighting a word down when many panes use it removes the boilerplate without a hand-made list, but it works against the goal: a topic is interesting precisely because several panes share it. On 26 to 45 short summaries it mostly reorders the same words. TF-IDF is the right tool across time, not across panes: weight words up when they are common now and rare last week, and you get “what is new today”. That needs a history of pane text, which the daemon does not keep (its history stores states and counts). So time-based TF-IDF is a storage decision first.
• Phrases. Two-word phrases (“copilot review”, “agent history”) read better, but need repetition: no phrase recurs in two panes on the demo fleet, one does on the live fleet. Worth adding once the base list is clean, not as a fix on its own.
• Entities as facets. Repositories (from the pane’s working directory), PR numbers (the daemon already links panes to PRs), file names and tool names are better treated as their own chip type than as words. On the live fleet 8 of the top 15 entities are shared by two or more panes, a stronger signal than any word method. On the demo fleet the repository facet just mirrors the tmux session, which is often true of real fleets too.
• Clustering panes. TF-IDF vectors with agglomerative clustering were tried on both fleets. On one-line summaries the vectors are too sparse. On the live fleet a reasonable threshold gives one cluster of two and 24 loners. Lower thresholds give six to eight clusters of two to four panes, but their membership changes with the threshold, and none spans more than two tmux sessions, so they add little beyond Group by Session. Embeddings would group better, but add a model call per pane for a 25 to 45 item problem.
• LLM-labelled themes. One cheap call over all current summaries returns five to eight named themes with their member panes, the only approach that yields labels a person would write (“checkout flake”, “API v3 migration”) and handles synonyms. It belongs in the daemon, which already holds the summaries and the model client, so every browser shows the same answer. Recompute at most every 10 minutes or when panes come and go, keep the old labels when membership barely changes, and store each run with its timestamp: that is the text history trends and “new today” need.

Stability matters as much as quality for a strip in view all day: chips should not reorder on every poll, so order by count with a fixed tie-break and re-rank at most once a minute.

Recommendation

Placement: T7. A one-line chip strip under the sidebar search, the top topics as chips with a “More” that opens the same list as search suggestions, and an active topic shown as a pill in the search field. On the dashboard the cloud moves to the left of the Running-by row, next to the sidebar, and the session cards balance into even rows. Topics sit within 10px of the list on every screen for 34px, the large cloud stays for browsing, and the orphan row is fixed independently. T1 is rejected: half the list on laptops for a worse cloud. T5 and T6 wait for better topics; both look broken on today’s words.

Computation: stage it. The follow-up PR cleans the existing client-side function (domain stoplist, digit and path filtering, folding, at least two panes per topic, stable ordering) and makes it the one source for strip, suggestions and cloud. That is cheap, and the strip depends on it. Entity facets and LLM themes are the next step, in the daemon, and both deserve their own design note. The themes call is the point at which a text history exists, which is what trends, “new today” and a Topic grouping actually need.

What the follow-up PR would build

It would build:

• One topic function (cleaned) feeding every topic surface.
• The chip strip under the sidebar search, showing the chips that fit, with “More”.
• Suggestions on focusing an empty search: recent searches, then topics with counts.
• The active topic as a removable pill in the search field.
• On the dashboard: the cloud moved left of Running by, and balanced session cards.

It would not build: the ultra-wide panel, Group by Topic, trend lines, entity facets, LLM-labelled themes, any new daemon storage, or any change to the phone layout.

Open questions

• Should the strip always show, or only when the fleet is big enough to need it (say 15 or more panes)? With five panes it is noise.
• Should repositories and PRs appear as chips mixed with words, or as their own row in the suggestions?
• Is one model call every ten minutes acceptable for LLM-labelled themes, given that the summaries already go to the same provider for classification?
• Should clicking a topic narrow the list (as now) or highlight matches in place, so the Needs-you cards never disappear behind a filter?
• Recent searches would be stored per browser. Is that enough, or should they follow you between the phone and the desktop?
