UI design process: fleet layout studies

Status: the chosen wide layout is built (docked chat merged; sidebar and chart split in review); the phone layout deliberately stays as it was. This note records how the wide /m layout was chosen, so the next layout change can start from the method rather than from a blank page.

The studies themselves are committed as one self-contained page: Fleet layout studies (on GitHub, which shows .html only as source: rendered preview or source ). Open it alongside this page.

The problem

The wide layout had grown by accretion. The header carried six controls at its far right (Live, notifications, chat, voice, theme, full UI) and an empty middle. A layout selector took a whole row above the terminal. And nothing on screen answered the question the operator of a dozen agents actually has: how many are working right now, and is that more or less than usual? The daemon already records agent states over time, so the data existed; it had nowhere to live.

On top of that sat a goal: the point of running many agents is to keep them busy, so the user wanted a target (“keep at least N running”) visible next to the trend.

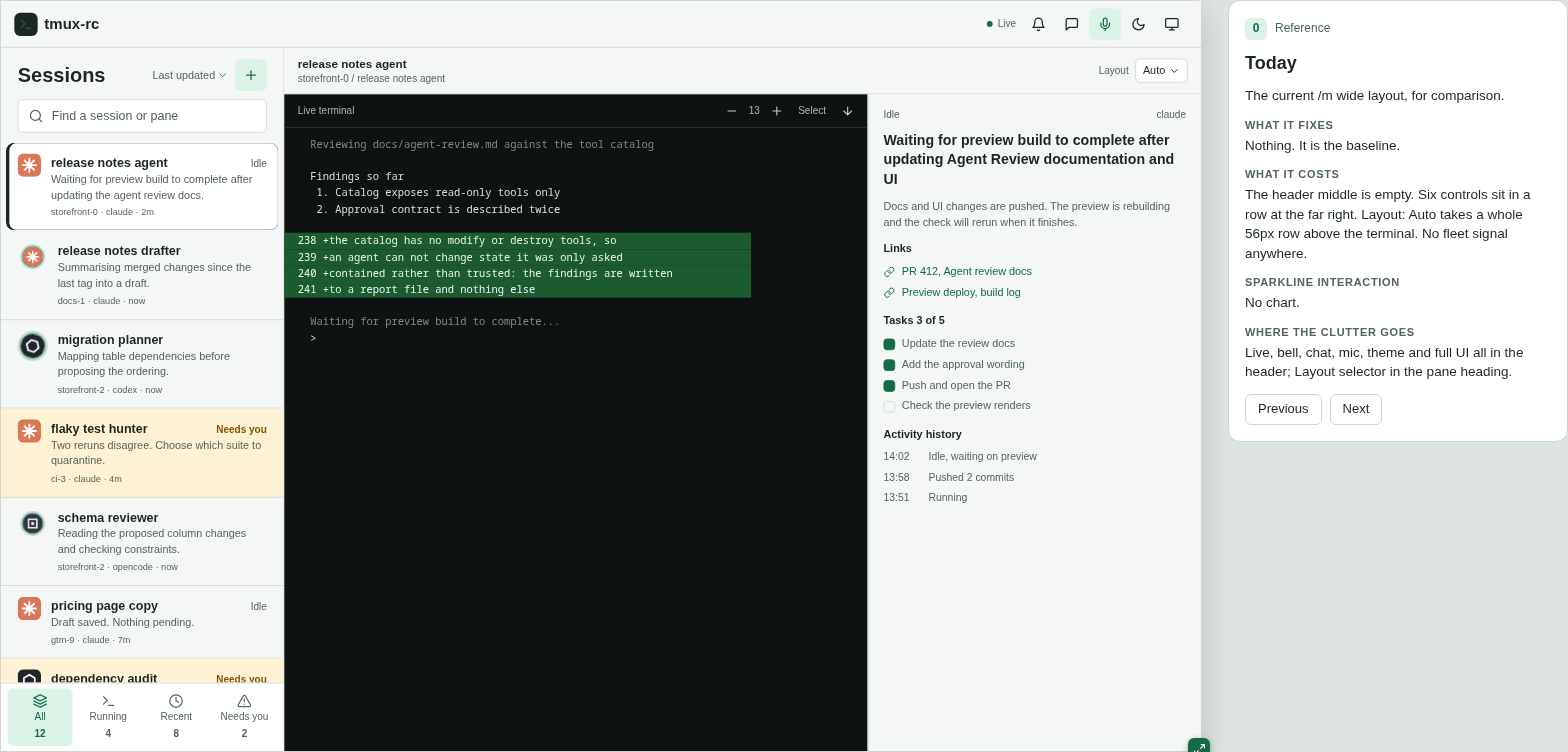

Today’s wide layout: the header is empty in the middle, six icons sit at the right, and there is no fleet signal anywhere

The method

Layout is hard to argue about in prose and expensive to argue about in code: building even one option touches the list, the header and the breakpoints, and by the time it is reviewable it has momentum. So the options were built as throwaway HTML mocks, with a few rules that made them worth trusting:

  • Real design tokens, realistic data. Every frame uses the app’s own colours and spacing, and a fleet that looks like a real one: dozens of panes across several tmux sessions, most idle, a few waiting on the user, and weeks of history with gaps where the laptop slept. Round 1 used real aggregate counts; later rounds use a generated 45-pane fleet with 37 days of history, because a 7-day average over a 30-day range needs that much. A layout that only works with five tidy rows is not a layout.
  • Every option written up the same way. Each frame carries four notes: what it fixes, what it costs, how the chart behaves, and where the displaced clutter goes. Moving six icons is easy; deciding where they land is the design.
  • Side by side, then one at a time. A gallery and a comparison table show every option at once; a focus view opens one frame next to its notes.
  • Resizable device frames. The focus view has device presets and a drag handle, and frames reflow at the app’s real breakpoints, so “fine at 1440, broken at 1100” shows up before anyone writes the feature.
  • The user picks and riffs. Each round ended with the user choosing, combining and saying what was wrong, and the next round was built from that.

The alternative, prototyping in the app on a component framework, was weighed separately for chat (see Should Chat adopt assistant-ui? ). A framework can speed up building one chosen design; it does not help choose between eleven.

Round 1: where could a fleet chart live?

Eleven wide options and five phone ones. A, K, F and G put the chart in the header (with chips, tabs, a command bar or a dock of agent logos); B and H add a strip under it; C, E and D use the list column, the right panel or an IDE-style status bar; I adds an icon rail so the whole header is free for the chart.

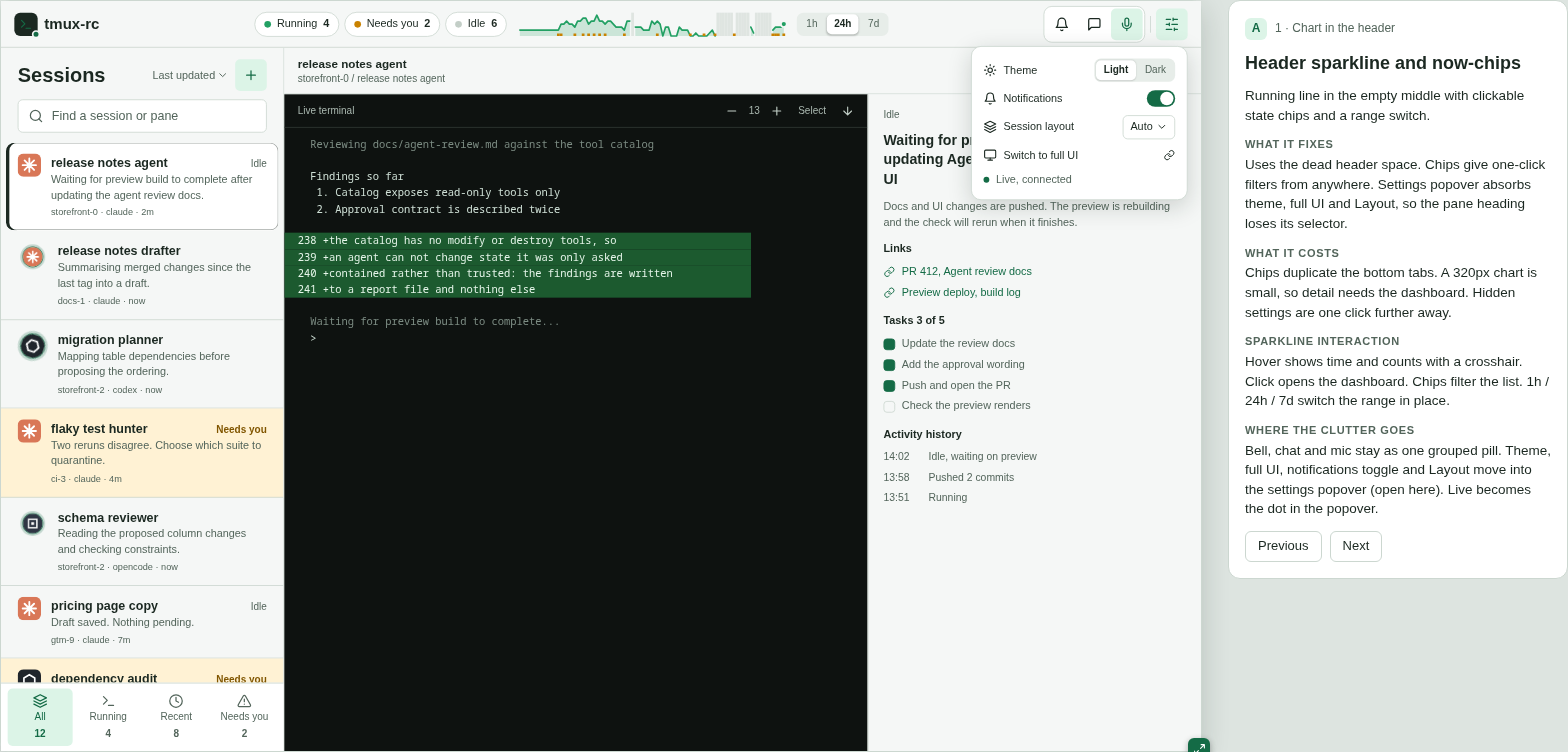

Option A: a sparkline and state chips fill the empty header middle

The header options were cheap but small: a 320px chart is texture, not information. H was liked for one specific behaviour, a slim strip that expands in place into a full chart with axes, without navigating away.

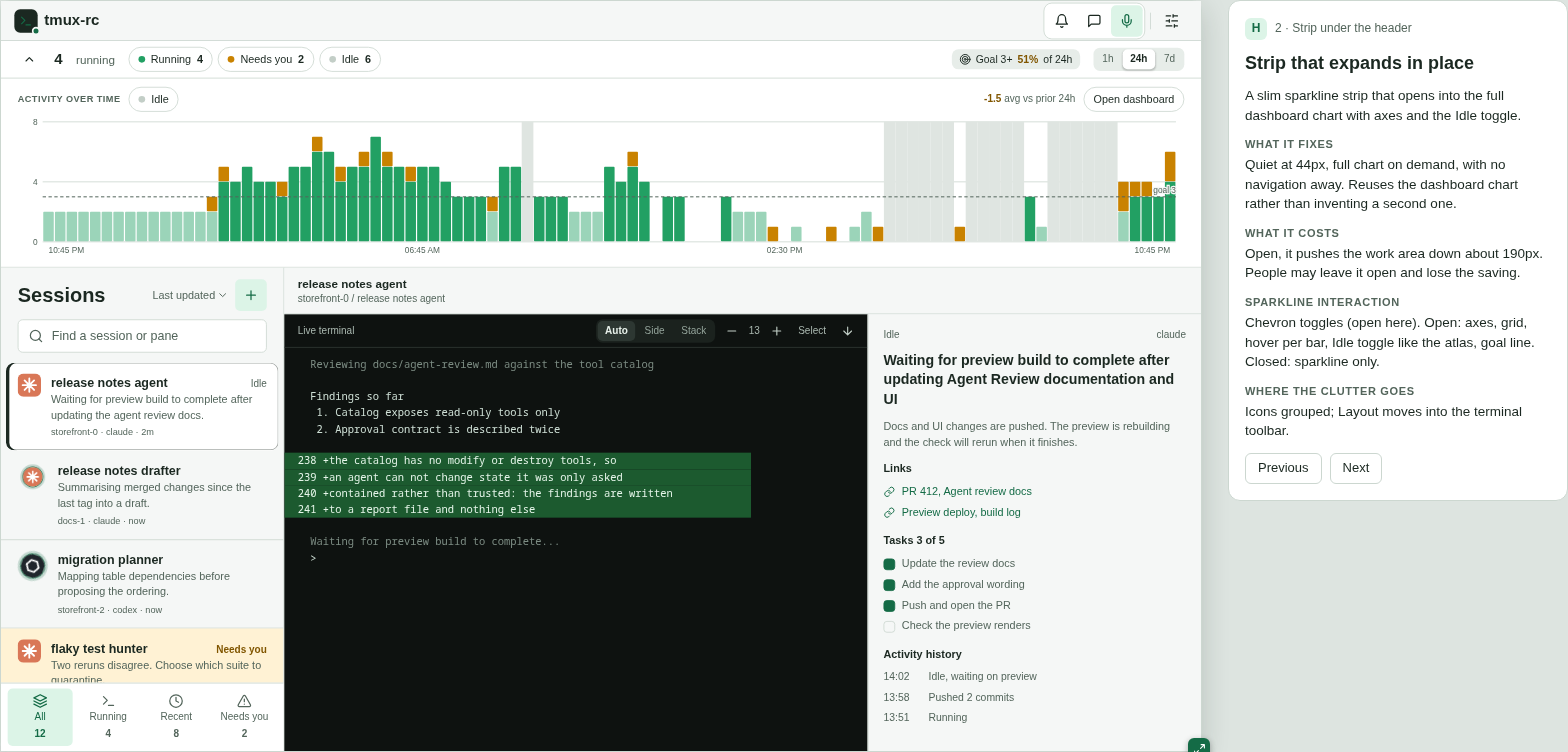

Option H: a slim strip that opens into the full chart in place

I won the round: separating where you go (the rail) from how things are (the header) was the right split. But the user disliked what it did next to the Sessions column: two navigation bars side by side. The model they pointed at was a chatbot’s thread sidebar, one column holding both destinations and conversations. They also asked for an editable goal and a 1-day, 3-day or 7-day moving average over the bars.

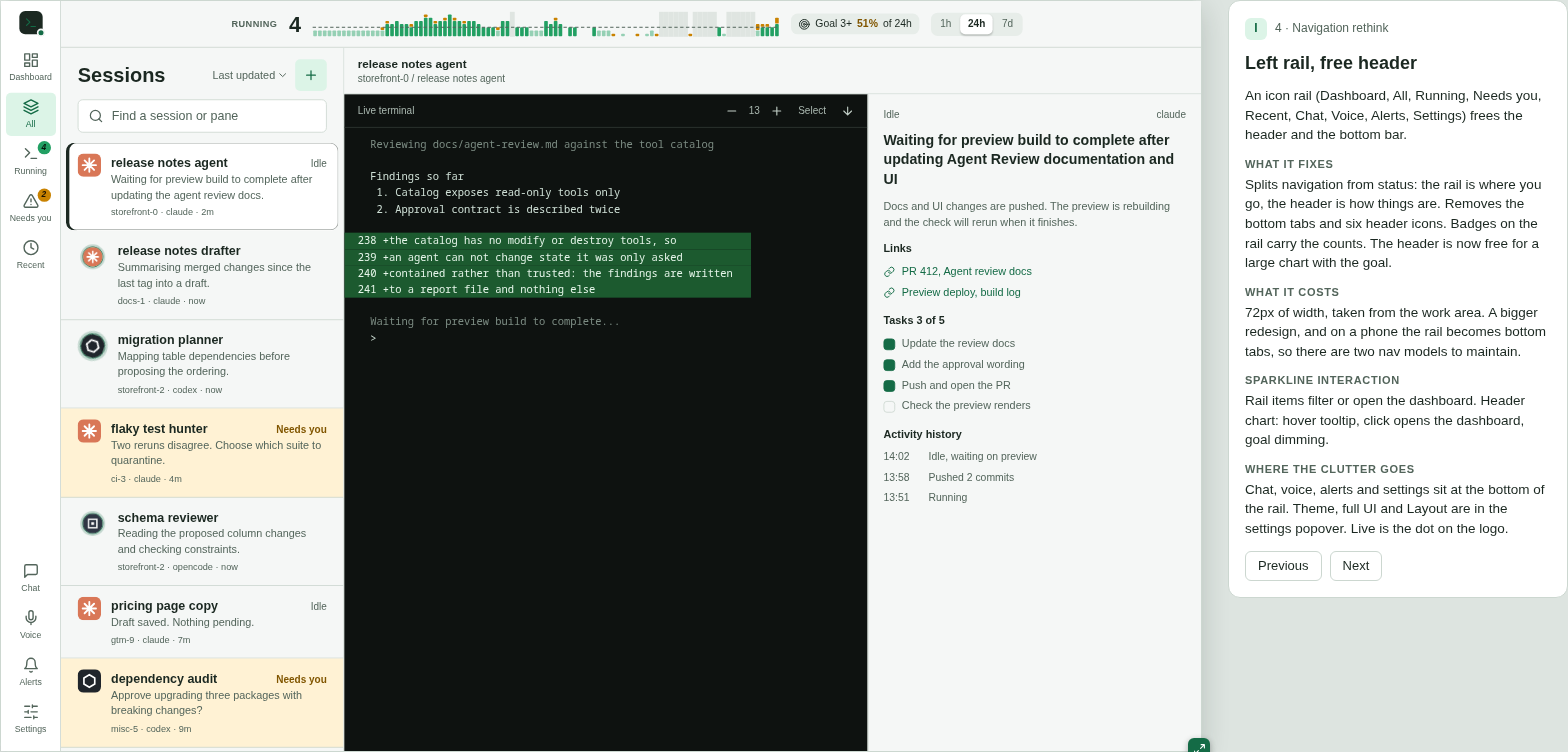

Option I: an icon rail frees the header for a large chart, but sits beside a second list column

Round 2: one sidebar

Round 2 merged rail and list into a single chatbot-style sidebar and tried the chart in four places. I2 kept it in the header; I3 docked it along the bottom of the work area, folding to a 40px strip and opening into H’s expanded chart; I4 put it in the sidebar footer; I5 reorganised the sidebar itself into an inbox: the panes that need you as cards with their question text, then Working, Just finished, and a folded Idle pile.

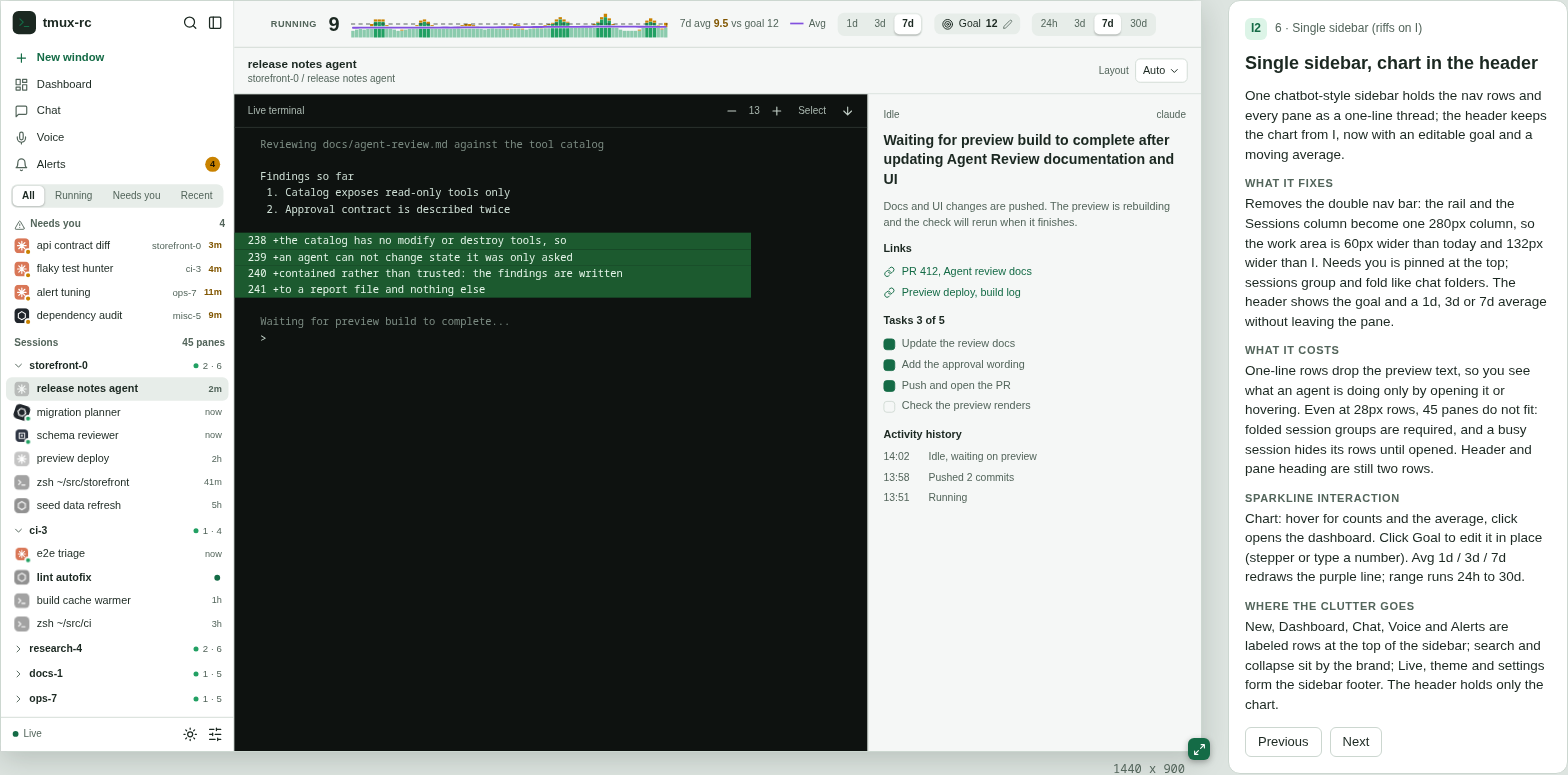

I2: one sidebar, chart still in the header

I2 still spent a full header row. I3 gave the terminal that row back and gave the chart the widest canvas on offer, at the cost of terminal height when open.

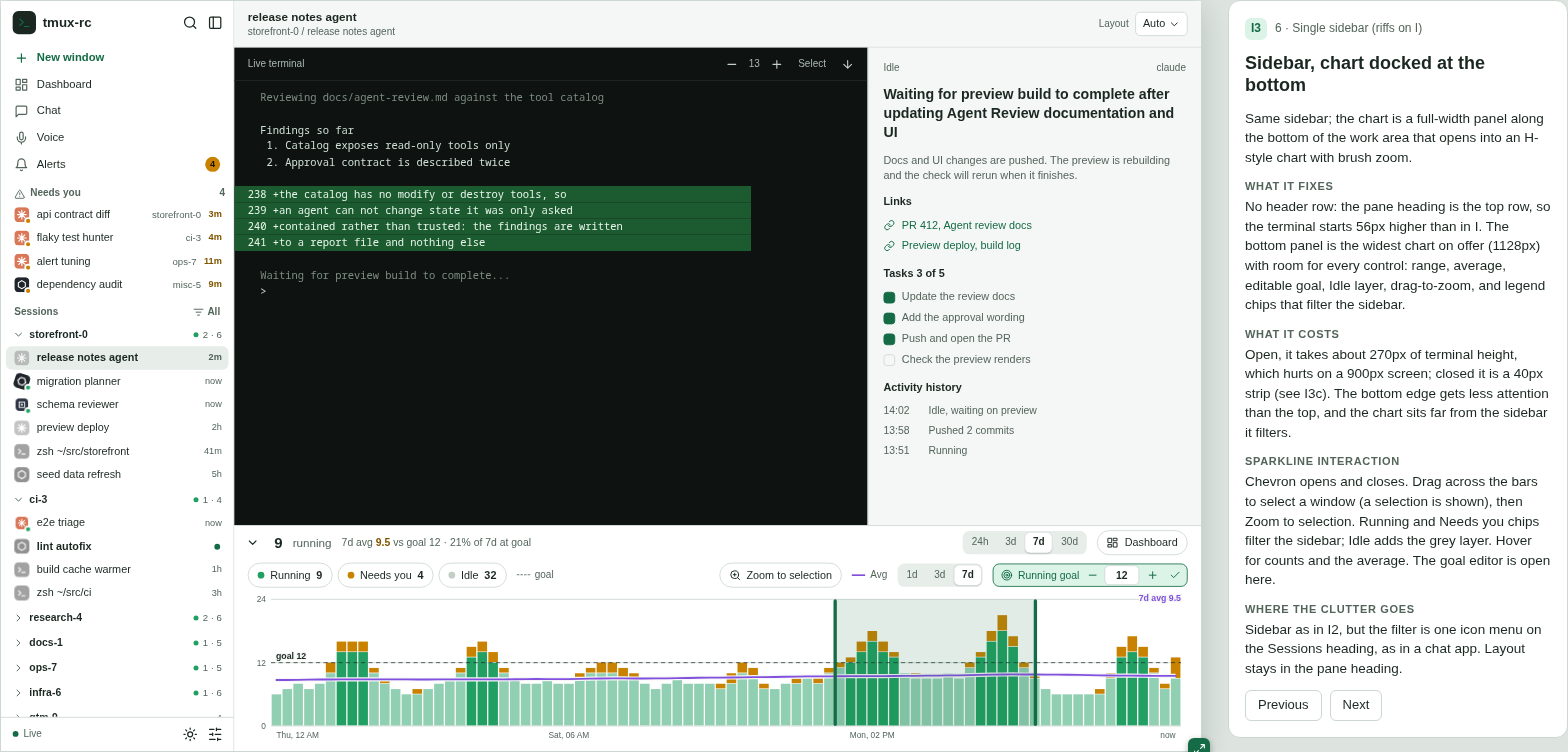

I3: the chart docked at the bottom of the work area

I5 was the surprise. Seeing the four questions without opening any pane changed what the sidebar is for: it stopped being a directory and became a to-do list. The user picked I3 combined with I5’s inbox.

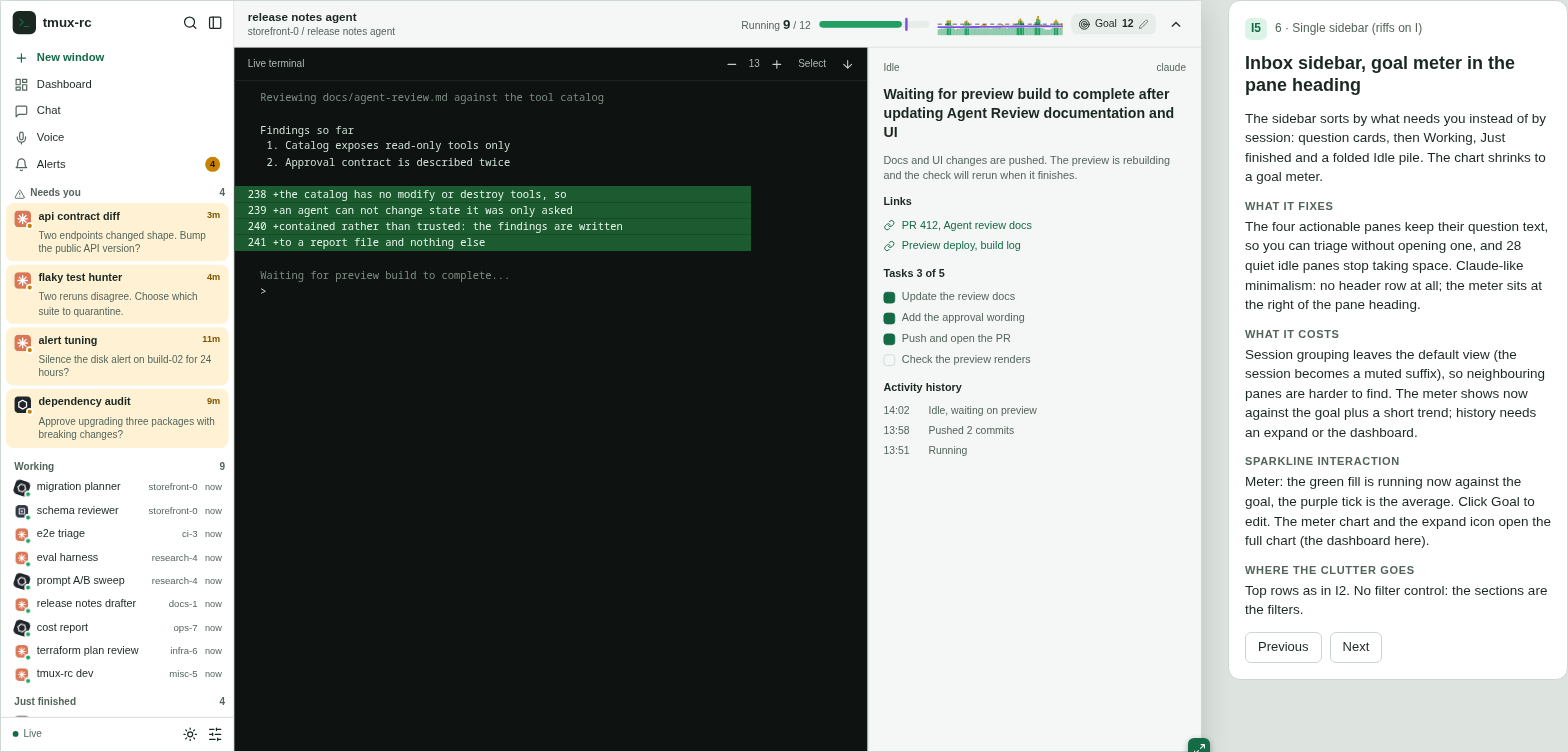

I5: question cards first, then Working, Just finished and a folded Idle pile

Round 3: the hybrid, and six ways to open a chart

With the sidebar settled, round 3 held it fixed and varied two things. In the sidebar: per-group density (one-line rows or activity cards), group by state or by tmux session, and reply buttons on the question cards so an answer takes one click. For the chart: six ways to open it, in place (R3a), as an overlay drawer (R3b), as a resizable split with snap points (R3c), as a full dashboard page (R3d), as a hover peek (R3e), or spread across the group headers as per-session sparklines (R3f).

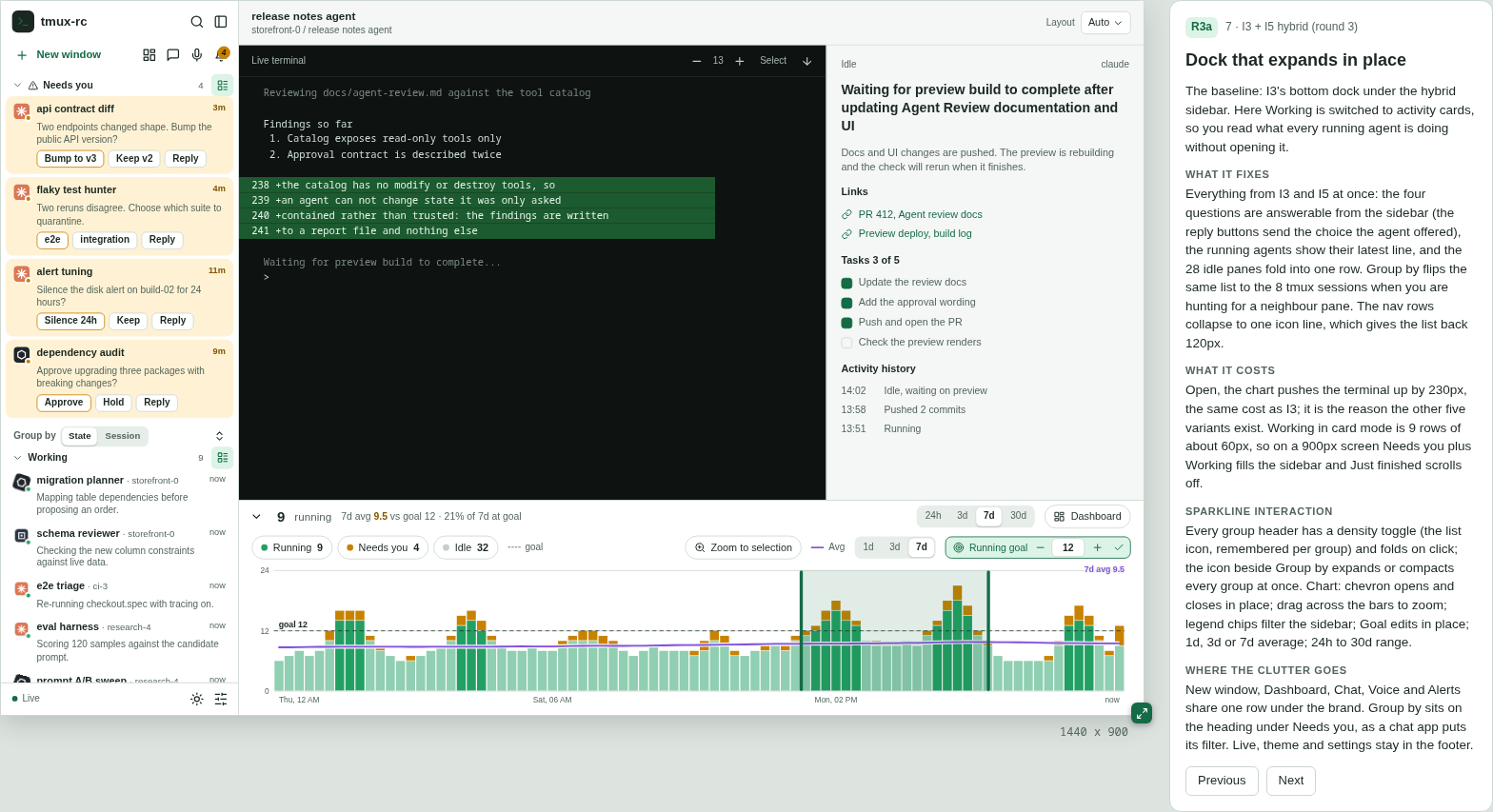

R3a: the hybrid sidebar with answerable cards, and the dock expanded in place

The user picked the sidebar with inline replies (R3a and R3c), the R3c split, where the terminal-to-chart trade is chosen once and stays, and the R3d dashboard page, whose per-session small multiples show which session is carrying the count. The drawer and the peek are transient, which is a poor fit for a number you want in view while you work.

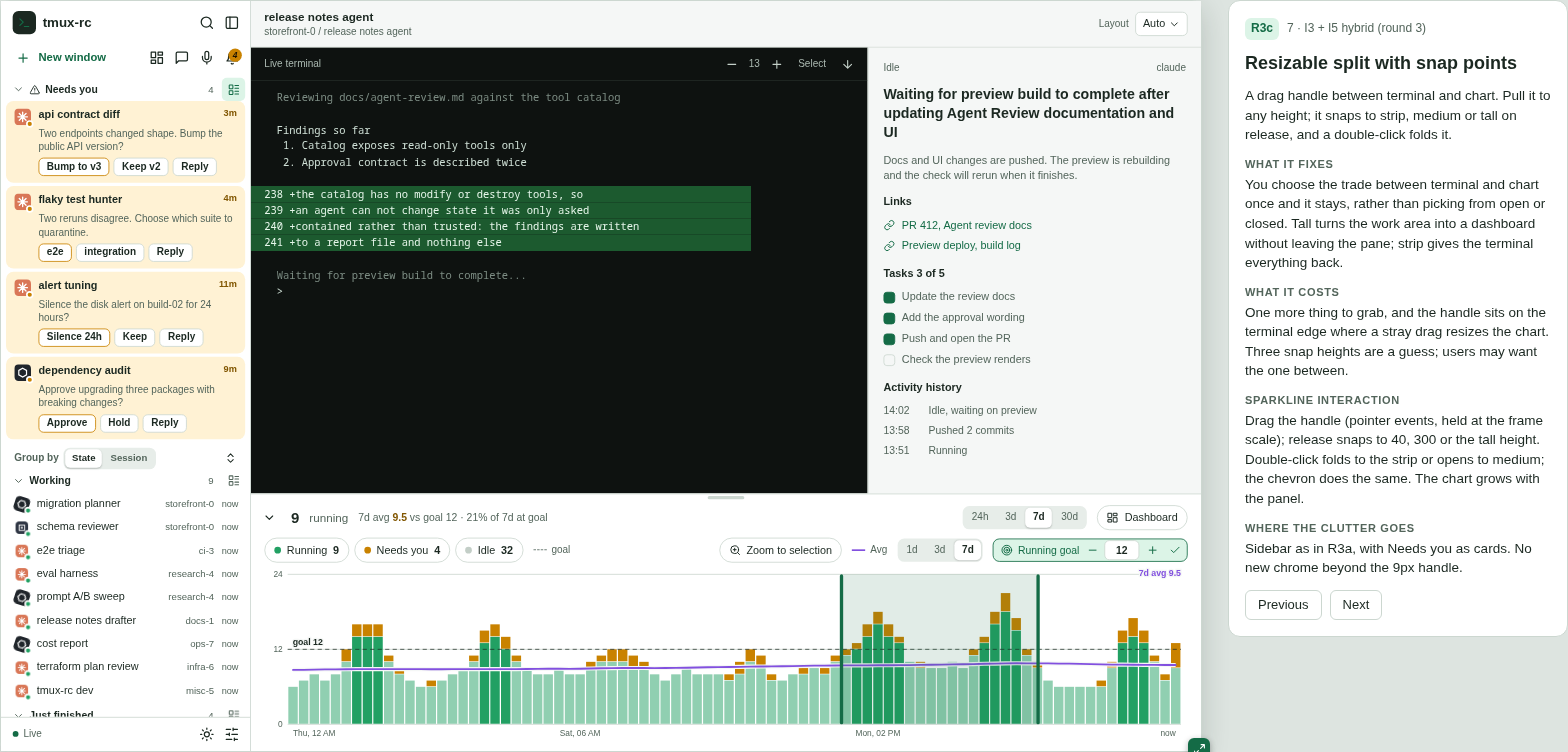

R3c: a drag handle between terminal and chart, snapping to strip, medium or tall

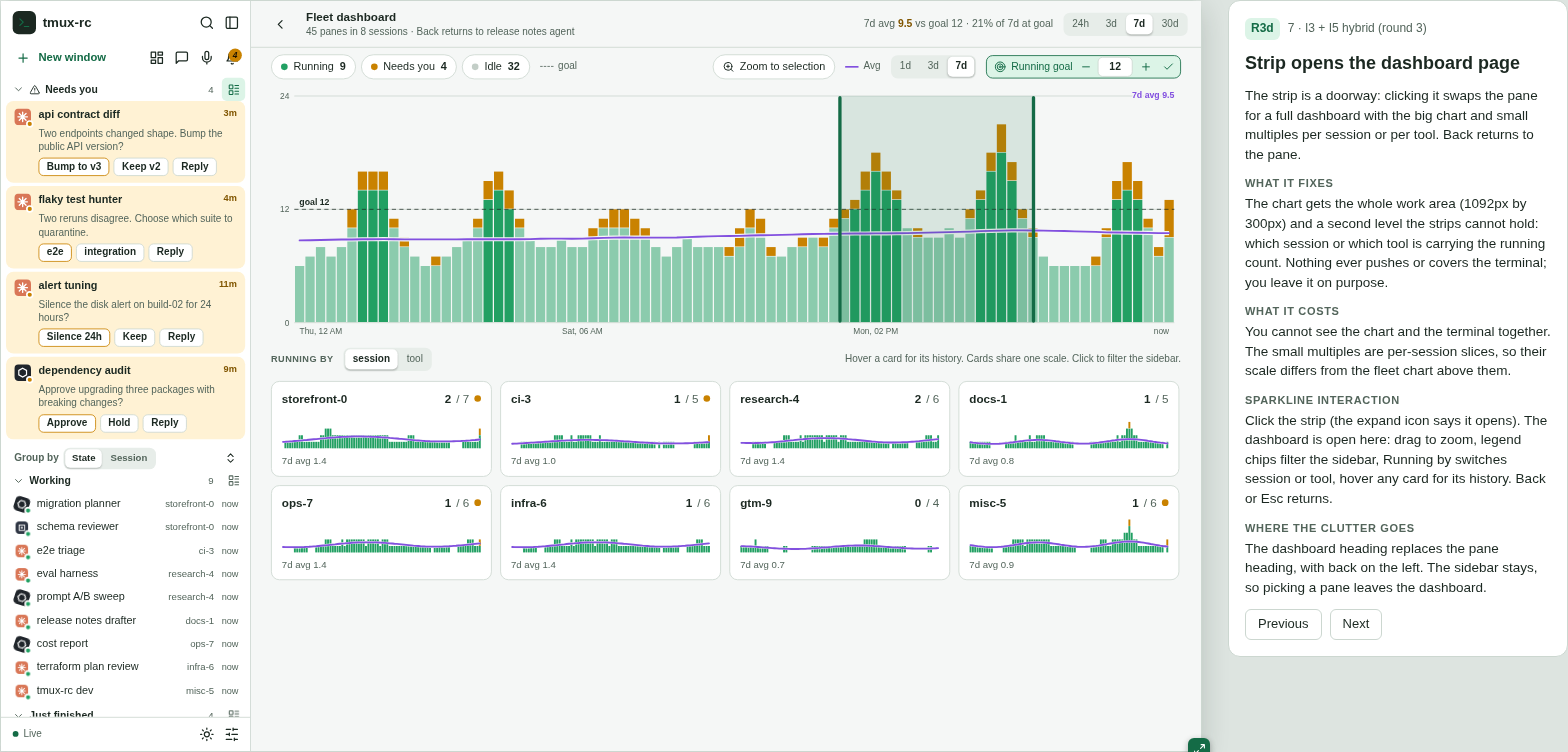

R3d: the strip opens a dashboard page with small multiples per session

The phone frames (P8, P9) brought the same sidebar to a 390px screen. They were rejected outright: putting the desktop UI on a phone makes no sense. The phone keeps its own layout.

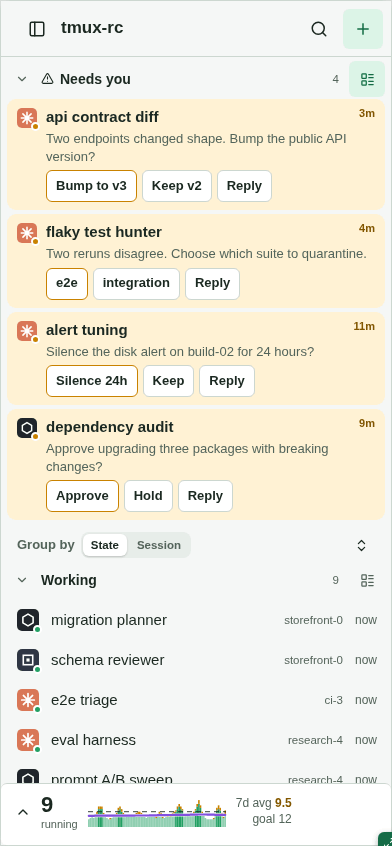

P8: the hybrid sidebar on a phone, rejected

The comparison table summarises every option in the file, newest round first:

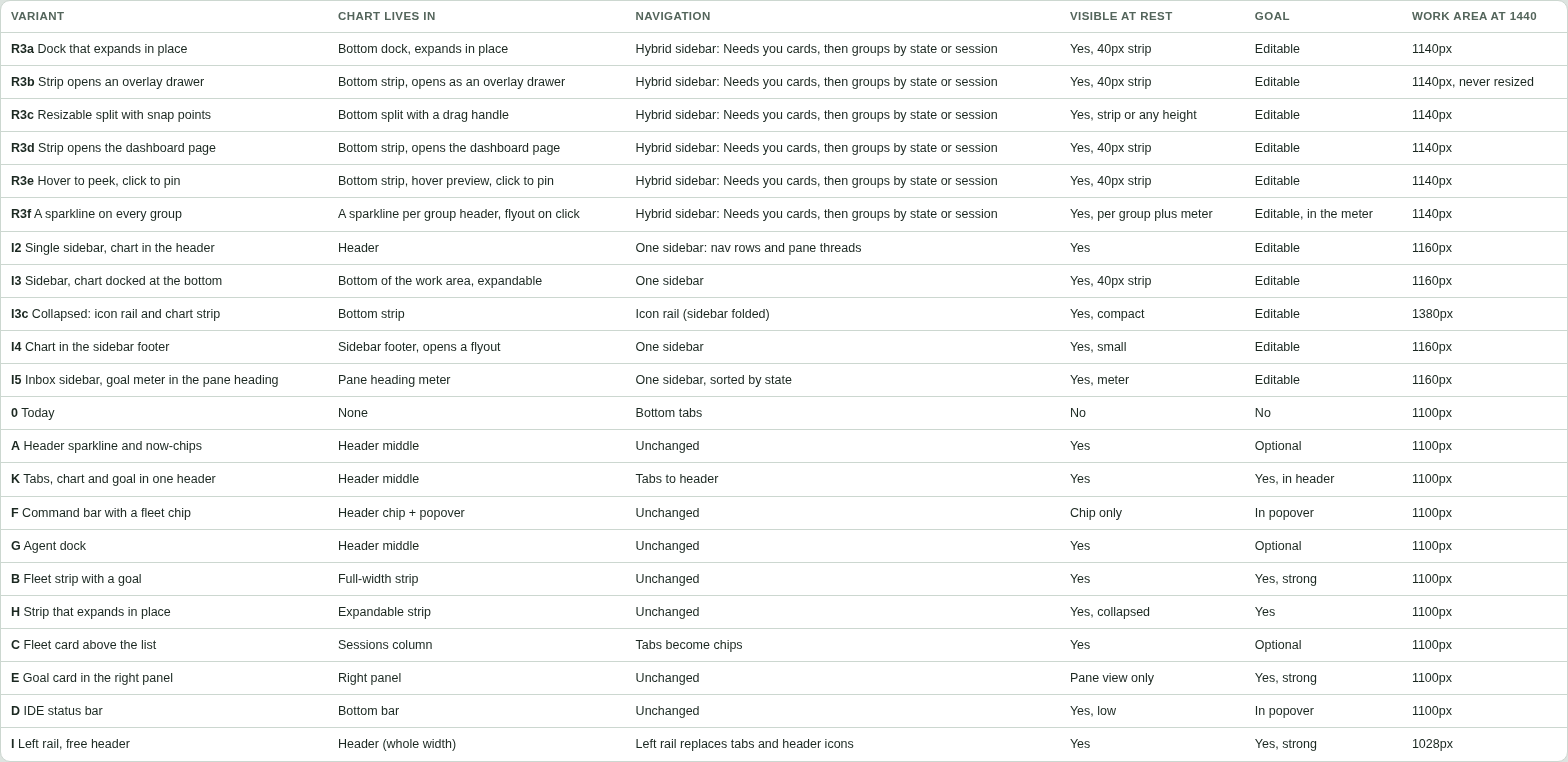

Comparison table: where the chart lives, navigation, visibility at rest, goal and work area for every variant

What was built, and what changed on contact

The choices became three pull requests: #298 (the hybrid sidebar with answerable Needs you cards, grouped by state or session), #299 (the chart as a split under the pane, the dashboard page, a shared goal and moving average) and #301 (chat docked beside the work area instead of a modal sheet).

Using the built thing surfaced what the mocks could not:

  • Idle is not folded by default, unlike the mock.
  • Rows get rich hover cards. One-line rows lose the preview text; hovering brings it back without reintroducing the clutter.
  • Legend chips filter the chart only. In the mock they also filtered the sidebar, so exploring the chart reshuffled the list; now the two are independent.
  • The chart header is one line, with Set goal next to the running count rather than a second toolbar row.
  • The moving average defaults to 1 day, and screens 1400px and wider default to a 7-day range (24 hours below that), so the line follows the days within the week rather than flattening across it.

The fixture-based screenshot tooling has since landed: make screenshots shoots the app against a synthetic demo fleet (#306), and CI posts screenshot diffs on UI PRs (#311). Shots of the shipped result can now show the same invented fleet as the mocks rather than someone’s real panes, which is how round 4 below was made.

Round 4: where topics live

The dashboard’s word cloud filters the sidebar list from the far side of the screen. Round 4 holds the shipped sidebar and dashboard fixed and moves the topics: into the sidebar, into the search box, as a chip strip, beside the sidebar on the dashboard, as an ultra-wide panel, and as a Group by mode. Unlike the earlier rounds, every frame is the shipped UI redrawn with the demo fleet, and every frame was measured at five screen sizes rather than judged by eye. It also asks how topics are computed, since the shipped words are mostly pane states. See Where topics live, and how they are computed .

Next time

The mock is a single HTML file with no build step and no network fetches. To iterate on it, open it from the docs site or the repo, copy a variant entry in its variant list, give it a new id and group, fill in the four notes, and arrange the existing pieces (sidebar, dock, chart, detail pane) in its builder. Start a new round as a new group rather than editing the old frames: the earlier rounds are the record of why the current design looks the way it does.

Two habits are worth keeping. Use realistic synthetic data, ideally the fixture tooling’s, so mock and shipped screenshots show the same fleet. And drag every frame down to tablet and phone widths before showing it: the breakpoints are where layouts fail.
